Dehn Modular Combined arrester for 1 pair blitzductorconnect with status in - 927254
Artikelnummer: 26570029 | Fabrikantnummer: 927254 | EAN: 4013364513419
Het productnummer van de fabrikant is 927254. Het EAN nummer is 4013364513419. Het interne artikelnummer is 26570029.
| Klasse |
Gecombineerde afleider voor data en M&R
Toon alle producten van deze klasse |
| Merk |
Dehn
Toon alle producten van Dehn |
| Beschermingsgraad (IP) | IP20 |
| Explosiegeteste uitvoering | Nee |
| Montagewijze | DIN-rail 35 mm |
| Met meldcontact | Nee |
| Nom. ontladingsstootstroom (8/20) | 10 kA |
| Veiligheidsniveau ader/ader | 70 V |
| Grensfrequentie | 1.5 MHz |
| Afleiderbewaking | Ja |
| Nom. belastingsstroom | 5 A |
| Aantal geleiders (excl. aarde) | 2 |
| Nom. spanning DC | 24 - 24 V |
| Max. continuspanning DC | 36 V |
| Veiligheidsniveau ader/aarde | 750 V |
| Max. continuspanning AC | 25.4 V |
| Stroomstoot bij onweer (10/350 µs) | 3 kA |
| Bouwbreedte | 6 mm |
| Signaal verbroken | Ja |
| Aarding via | DIN-rail (Omega-rail) |
| Aansluiting 1 | Steekklem aansluiting |
| Categorieën |
Netoverspanning conditionering
Coax en data |
Dehn RECORD CONDITIEMONITOR
Artikelnummer: 23551061
Fabrikantnummer: 910710
Dehn Protection Module for 2 single cores blitzductorconnect W. fault indic
Artikelnummer: 26570009
Fabrikantnummer: 927010
Dehn Combined Arrester protection module for 1 pair blitzductorconnect with
Artikelnummer: 26570010
Fabrikantnummer: 927014
Dehn Protection Module for 2 single cores blitzductorconnect W. fault indic
Artikelnummer: 26570011
Fabrikantnummer: 927022
Dehn Modular Arrester for 2 single cores blitzductorconnect W. fault indica
Artikelnummer: 26570012
Fabrikantnummer: 927024
Dehn Protection Module for 2 single cores blitzductorconnect W. fault indic
Artikelnummer: 26570013
Fabrikantnummer: 927025
Dehn Combined Arrester protection module for 2 single lines blitzductorconn
Artikelnummer: 26570014
Fabrikantnummer: 927027
Dehn Protection Module for 1 pair blitzductorconnect W. fault indication
Artikelnummer: 26570015
Fabrikantnummer: 927042
Dehn Protection Module for 1 pair blitzductorconnect W. fault indication
Artikelnummer: 26570016
Fabrikantnummer: 927044
Dehn Protection Module for 1 pair blitzductorconnect W. fault indication
Artikelnummer: 26570017
Fabrikantnummer: 927045
Dehn Combined Arrester protection module for 1 pair blitzductorconnect with
Artikelnummer: 26570018
Fabrikantnummer: 927047
Dehn Combined Arrester for 1 pair, blitzductorconnect W. status indication
Artikelnummer: 26570019
Fabrikantnummer: 927054
Dehn Protection Module for 2 single cores blitzductorconnect W. fault indic
Artikelnummer: 26570020
Fabrikantnummer: 927070
Dehn Protection Module for 1 pair blitzductorconnect W. fault indication
Artikelnummer: 26570021
Fabrikantnummer: 927071

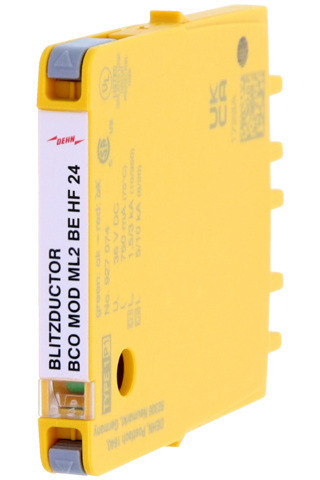

Dehn Combined Arrester protection module for 2 single lines blitzductorconn
