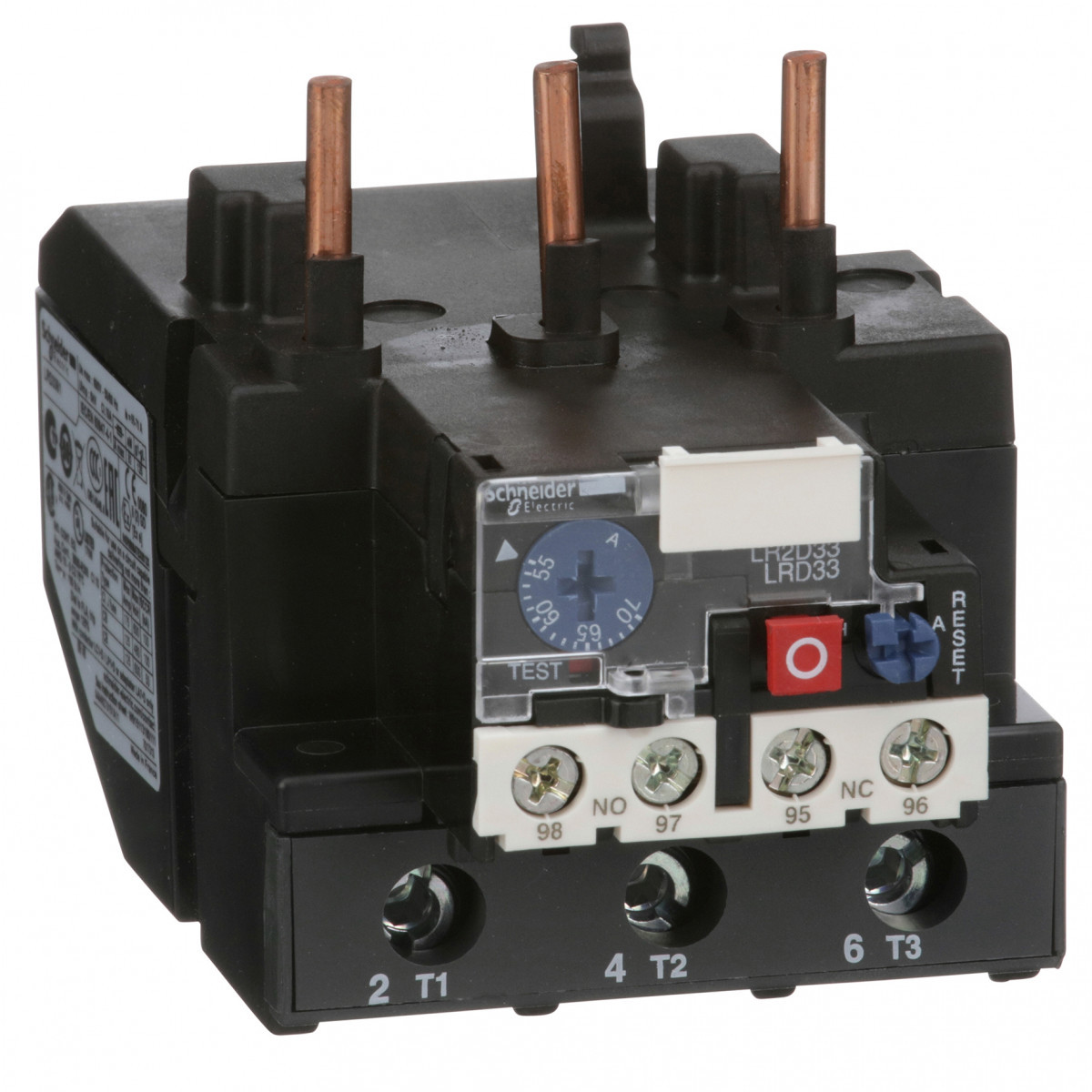

Schneider Electric therm.overb.rel.55-70a - LRD3361

Aanvullende informatie TeSys LRD thermal overload relay, 70A/1000V, thermal setting range 55-70A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector acting also as reset button, a trip test button for simulation of a tripping, a stop button, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D80-D95. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LA7D3064 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

---

TeSys - LRD -Thermisch overbelastingrelais - 70A/1000V - Thermisch instelbereik 55-70A - Klasse 10A - Voor bescherming van 3-fasenmotoren: 37kW@400V. Differentieel apparaat met fasefout (verlies). De UPS beschikt over een thermische afstelknop, een handmat
