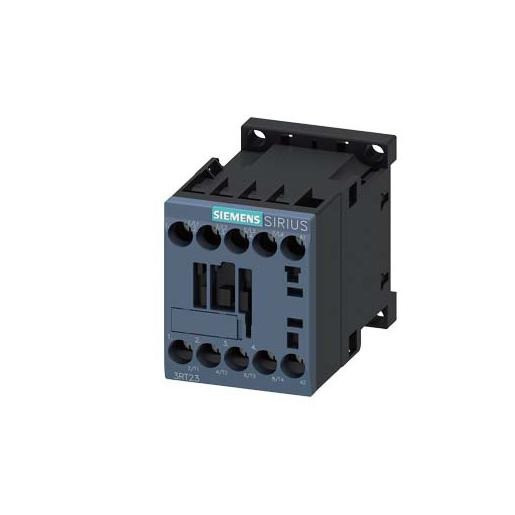

Siemens 3RT magneetschakelaar ac 5,5KW 12a ac3 schroefaansluiting 4cont - 3RT23171AB00
Artikelnummer: 12278785 | Fabrikantnummer: 3RT23171AB00 | EAN: 4011209785137
Omschrijving
Siemens magneetschakelaar
Het productnummer van de fabrikant is 3RT23171AB00. Het EAN nummer is 4011209785137. Het interne artikelnummer is 12278785.
Aanvullende informatie
Magneetschakelaar, AC-1, 22 A/400 V/40 °C, S00, 4-polig, 24 V AC, 50/60Hz, schroefaansluiting
contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 24 V AC, 50/60 Hz, screw terminal, size: S00 Contactor SIRIUS 3RT23 for switching weak or non-inductive loads. The 3RT23 contactors are part of the modular SIRIUS system with its optimally coordinated products.
» Bekijk uitgebreide informatie op de website van Siemens
Specificaties
contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 24 V AC, 50/60 Hz, screw terminal, size: S00 Contactor SIRIUS 3RT23 for switching weak or non-inductive loads. The 3RT23 contactors are part of the modular SIRIUS system with its optimally coordinated products.
Klasse |
Magneetschakelaar
Toon alle producten van deze klasse |
Merk |
Siemens
Toon alle producten van Siemens |
Aansluitwijze hoofdstroomcircuit | Schroefaansluiting |
Type stuurspanning | AC |
Modulaire uitvoering (voor railmontage) | Ja |
Nom. bedrijfsstroom Ie bij AC-3, 400 V | 12 A |
Nom. vermogen bij AC-3, 400 V | 5.5 kW |
Nom. bedrijfsstroom Ie bij AC-1, 400 V | 22 A |
Nom. bedrijfsstroom Ie bij AC-4, 400 V | 8.5 A |
Aantal hoofdcontacten als maakcontact | 4 |
Nom. vermogen bij AC-4, 400 V | 4 kW |
Nom. stuurspanning bij AC 50 Hz | 24 - 24 V |
Nom. stuurspanning bij AC 60 Hz | 24 - 24 V |
Breedte | mm |
Hoogte | mm |
Diepte | mm |
Bedrijfsspanning bij AC 50 Hz | - V |
Bedrijfsspanning bij AC 60 Hz | - V |
