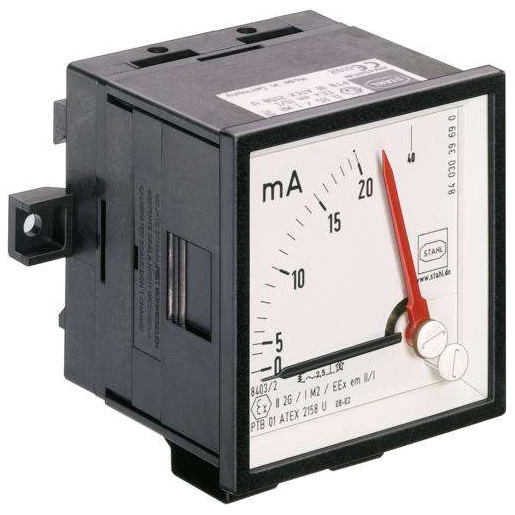

Stahl 8403C6-1T-2 converter ammeter ue=2 - 262732

Aanvullende informatie R. STAHL Series 8403C6 ammeters are installed in Ex e type of protection enclosures. They provide measured values for circuits which can be quickly compared with the desired values via a red pointer affixed on the outside. The devices work with a moving iron movement with accuracy class 2.5. Moving iron ammeter For transducer, explosion-protected, Type: 8403C6-1T-2, Movement: 0 to 1 A, Scale: without, Rated insulation voltage: 690 V, Frequency: 50/60 Hz AC, DC, Overload scale: 2x, Overload capacity: 50 x IN 1 sec, Power dissipation: 0,67 VAM, Accuracy class: 2,5, Terminal cross-section: 2,5 ... 10 mm2 Solid, 2,5 ... 6 mm2 Finely stranded, Dimensions (W x H x D): 72 x 71,2 x 72 mm, Enclosure material: Polycarbonate, Application range (zones): 1 2, Degree of protection (IP): IP54, Terminal degree of prot. (IP): IP20, Gas explosion protection: II 2 G Ex eb IIC, For further information, see: r-stahl.com WebCode 8403B
